Symbolics Color Graphics System

Courtesy of Rainer Joswig (again), lemonodor presents scans of a Symbolics Color Graphics System (aka S-Graphics) brochure. Given my propensity for cluttering lemonodor with pretty pictures, it's probably not surprising that I have a soft spot in my heart for 3D graphics in Lisp. You can imagine my delight when Rainer mentioned he had these scans.

some 3d dinos a still from Stanley and Stella in: Breaking the Ice, by Symbolics

S-Graphics running on Symbolics hardware became nearly ubiquitous in broadcast and film animation in the late 80s and early 90s. Many of the short films in The Mind's Eye, a 1990 compilation of computer animation, were created on Symbolics systems. The video included a groundbreaking animation produced by the Symbolics Graphics Division, "Stanley and Stella in: Breaking the Ice". (Stanley and Stella was one of the first applications of Craig Reynolds' "boids" behavioral animation model.)

a still from a boids animation test a still from a boids animation test a still from a boids animation test

When Symbolics went bankrupt S-Graphics was acquired by Nichimen Corp., which renamed it N-Graphics and eventually turned it into a series of high-end graphics tools: N-World, then Mirai. As just one example of the popularity of the tools, the graphics in Super Mario 64 were created with N-World (which is built on ACL). Two years ago Izware took over development of the Nichimen graphics products.

a character developed with Mirai

So that's a short summary of the long history of S-Graphics. In 1984, when this brochure was produced, I doubt anyone was expecting even descendents of the software to be around almost 20 years later.

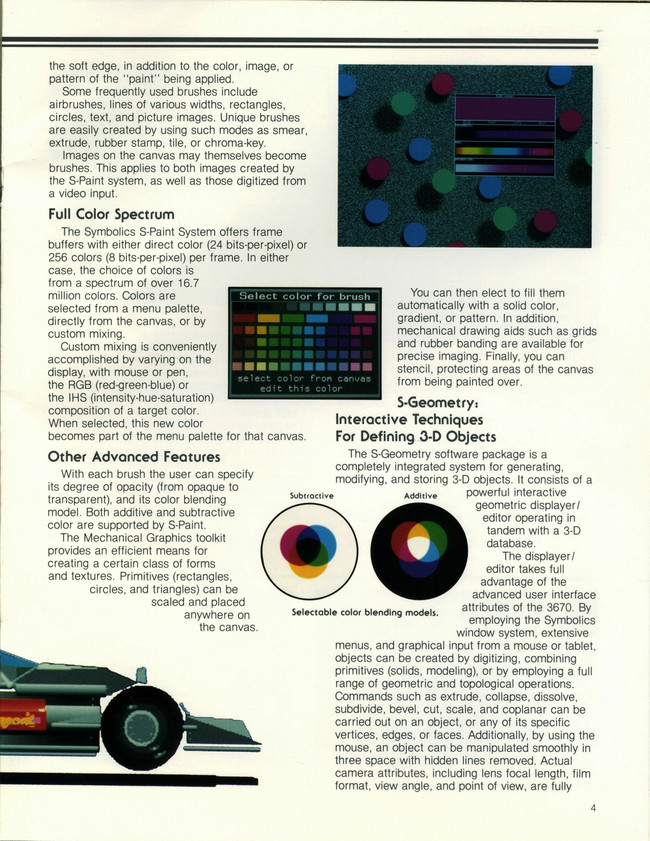

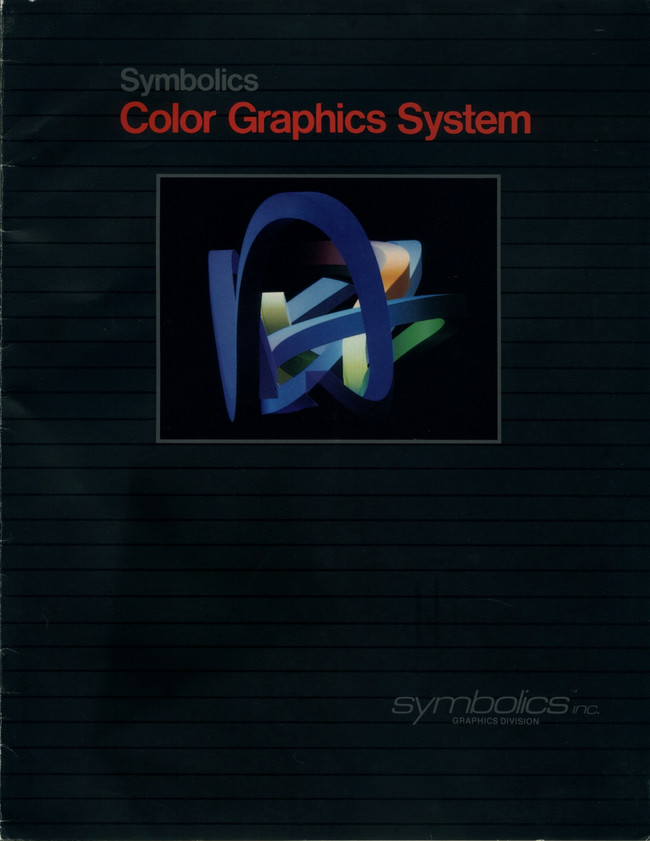

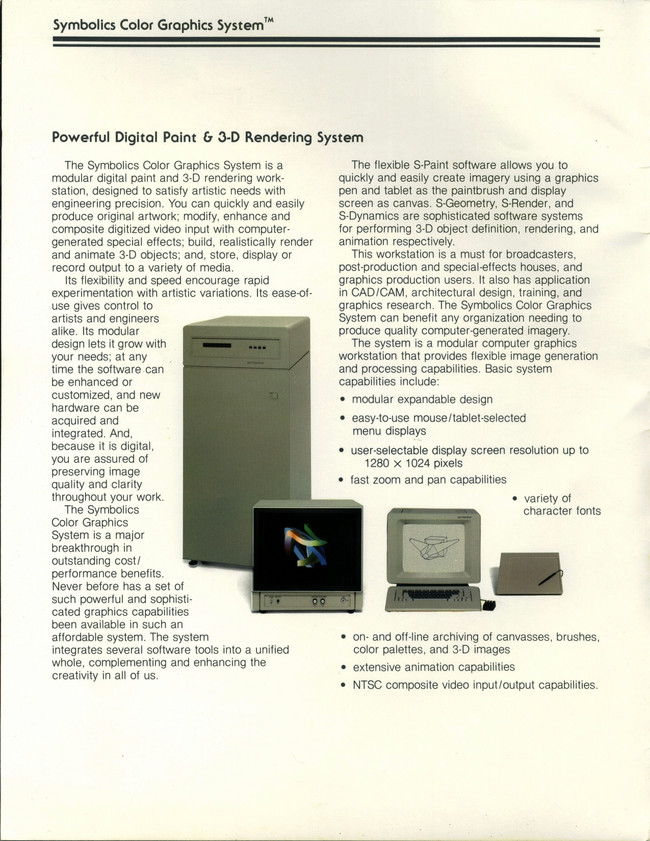

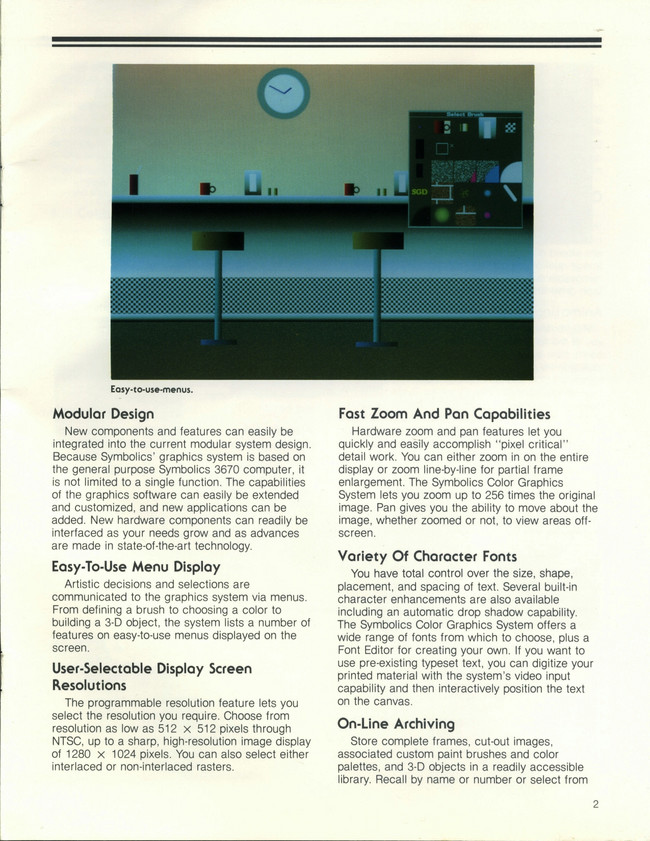

Symbolics Color Graphics brochure, page 1Symbolics Color Graphics brochure, page 2
Symbolics Color Graphics System, Pages 1-2

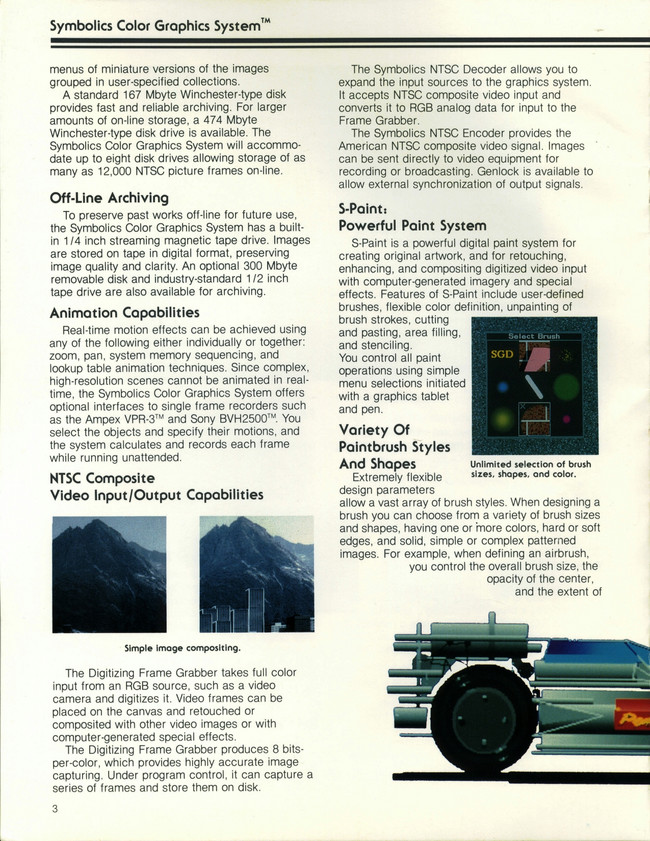

Symbolics Color Graphics brochure, page 3Symbolics Color Graphics brochure, page 4
Pages 3-4

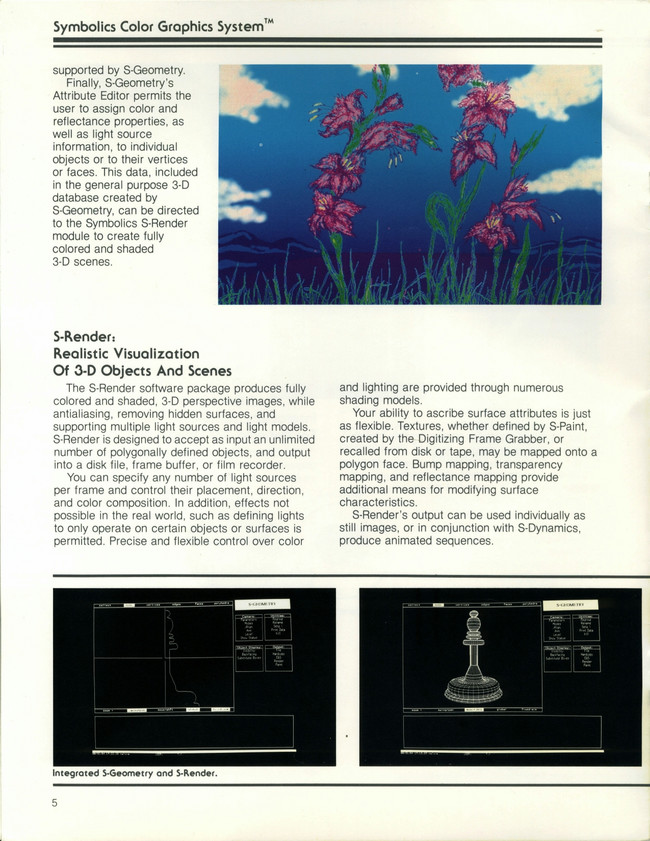

Symbolics Color Graphics brochure, page 5Symbolics Color Graphics brochure, page 6
Pages 5-6

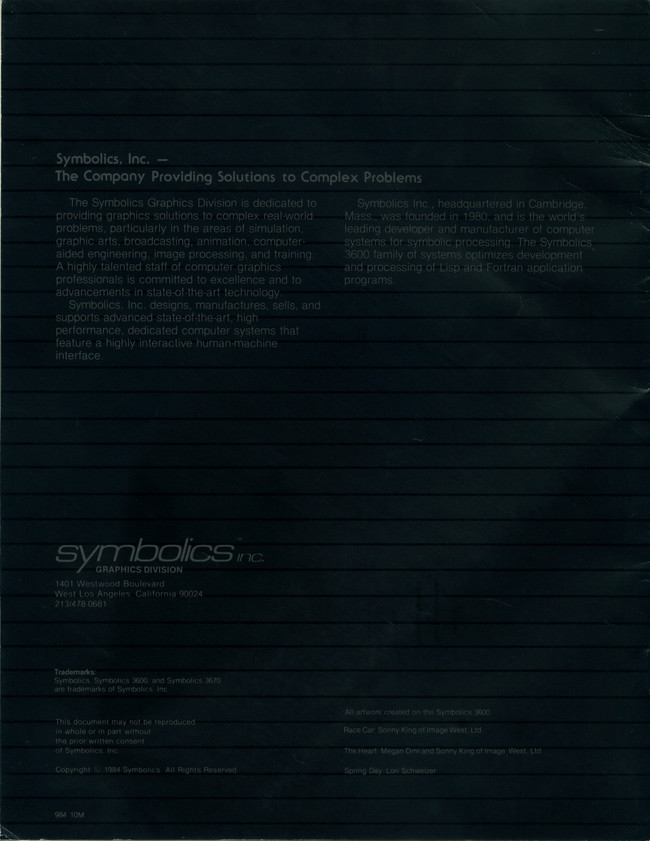

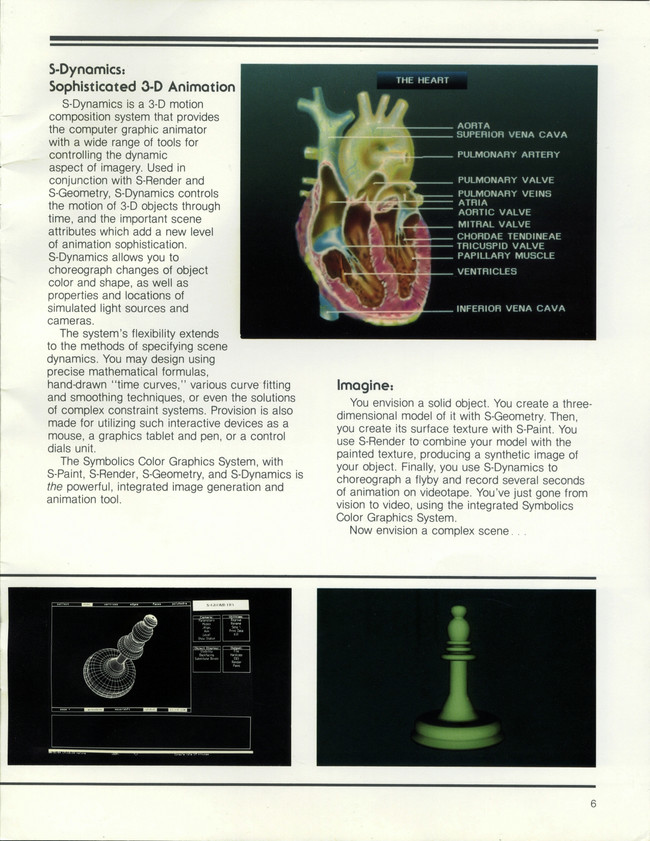

Symbolics Color Graphics brochure, page 7Symbolics Color Graphics brochure, page 7
Pages 7-8
